Disclaimer: This repository documents the architecture and problem-solving approach behind a system independently designed and built by the author using employer-owned Google Workspace infrastructure. It contains no proprietary source code beyond generic implementation patterns, no real credentials, no live API keys, and no organizational branding. All identifying references have been replaced with placeholders. This is a record of engineering skill and handover-ready design, not a claim of ownership over the deployed production instance.

✍️ Dynamic Email Signature Generator & Animated Brand Asset

A self-service, Active Directory-integrated email signature platform — engineered in-house on existing Google Workspace infrastructure at zero licensing cost — paired with an animated brand asset.

💰 Build Cost	📉 Vendor Cost/Year	🎬 Logo Animation
£0	£4,500 – £9,000	24fps, email-safe

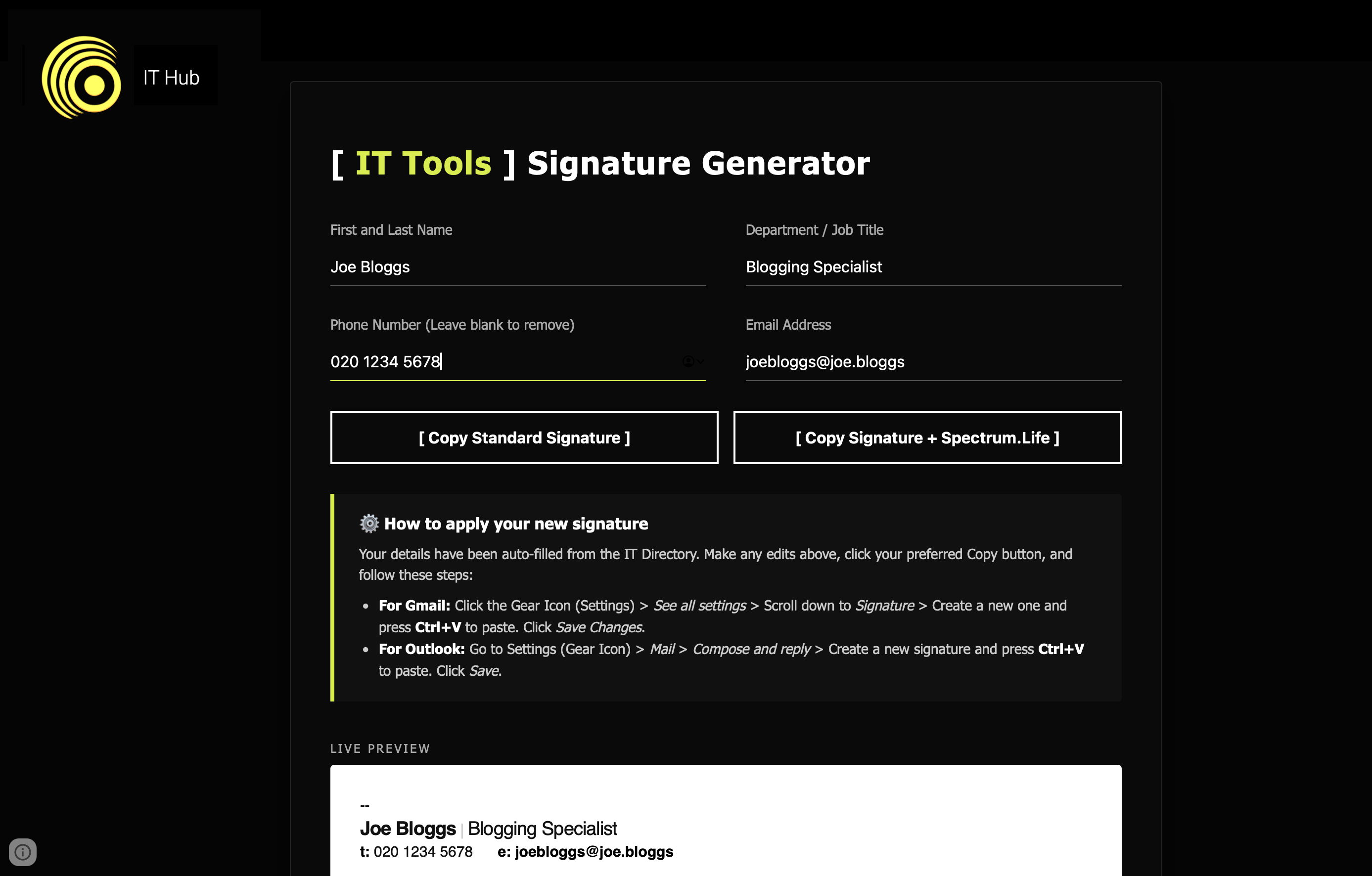

Main Screen

📖 Executive Summary

A staff member opens the tool. It silently authenticates them against the organisation’s Google Workspace Active Directory, auto-fills their name, job title, department, email, and phone number, renders a live signature preview — including a custom animated logo — and lets them copy a ready-to-paste HTML block directly into Gmail or Outlook.

Zero data stored. Zero database. Zero recurring licence cost.

This replaces the standard commercial fix (Exclaimer, CodeTwo — server-enforced signature platforms billed per-user, per-month) with a stateless tool built entirely on infrastructure the organisation already owned.

🧩 The Problem

Manual, staff-formatted signatures produce a predictable set of headaches at scale:

Visual inconsistency — stretched/broken logos, inconsistent fonts, job titles in random casing
Technical errors — outdated contact details, broken image placeholders
Scalability — asking hundreds of staff to hand-format HTML correctly is not a deployment strategy

🏗️ Hosting Platform Evaluation

Every dead end here informed a real architectural constraint — the reasoning is the actual engineering value of this section.

Attempt	Result	Why it failed
SharePoint document library	❌	Forces file download instead of rendering; SharePoint blocks custom HTML/JS as an XSS-prevention measure
SharePoint “Embed” web part	❌	Works, but exposes the full HTML/CSS/JS source to anyone using “View Source”
SharePoint List + Power Apps	❌	Functional, but forces staff into a database-style interface for a task that should take under a minute
Google Apps Script	✅ Selected	Hosts a free stateless HTML page, needs no external server, and — critically — can call the Workspace Admin Directory API server-side

// Code.gs — minimum viable version
function doGet() {
  return HtmlService.createHtmlOutputFromFile('Index')
    .setTitle('IT Signature Generator')
    .setXFrameOptionsMode(HtmlService.XFrameOptionsMode.ALLOWALL);
}

Deployment config: Execute as: Me · Access: Anyone within the organisation. A Google Site is used purely as the branded front door — the Apps Script Web App URL is embedded into it as a full-page embed.

⚙️ Application Architecture

Front End

Single Index.html served by Apps Script. Dark-mode UI matching brand identity (#050505 background, neon accent), with:

Minimalist bottom-border input fields
Live signature preview in a white box — deliberately not dark mode, since it must match exactly how it renders once pasted into an email
Responsive breakpoint stack (single-column collapse under 600px)

Back End — Active Directory Auto-Fill

Rather than making staff type their own details, the backend queries the Google Workspace Admin Directory API for the currently authenticated user and returns name, job title (falling back to department if blank), phone, and email. On any failure, the function returns null and the form silently falls back to manual entry — it never surfaces an error to the user.

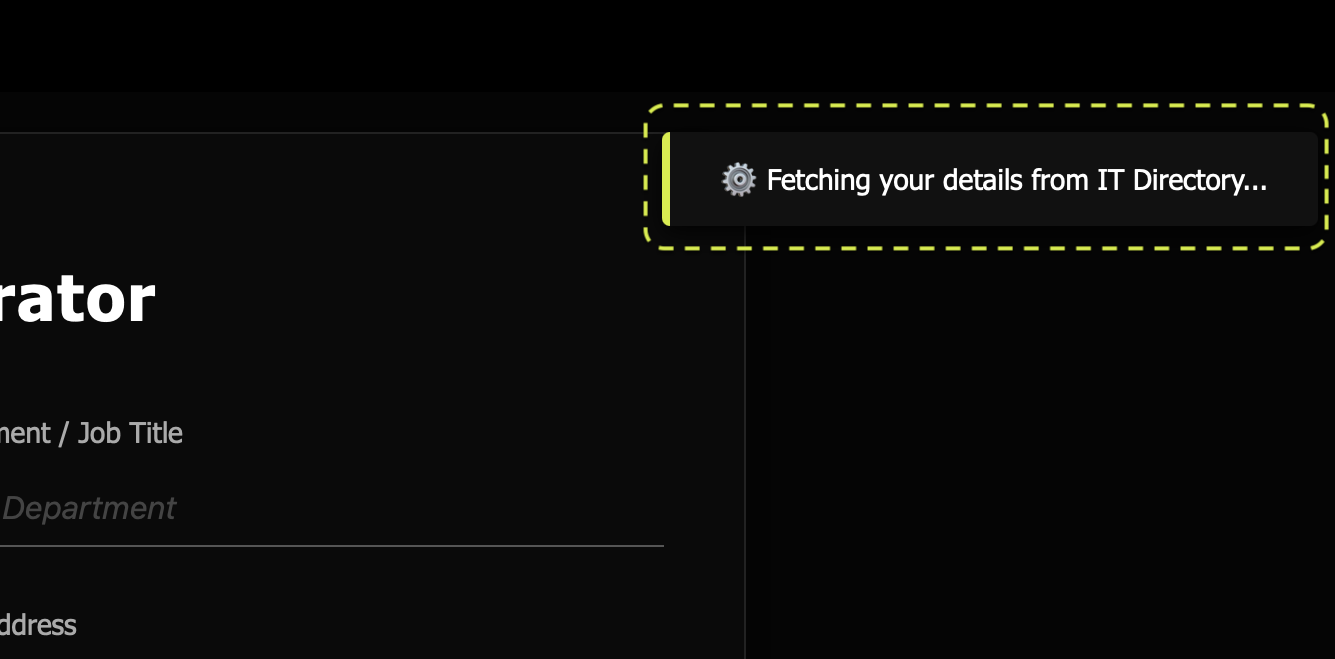

Toast Message — AD Extract in Progress

// Code.gs — getStaffDetails()
function getStaffDetails() {
  try {
    var email = Session.getActiveUser().getEmail();
    if (!email) return null;

    var user = AdminDirectory.Users.get(email, {projection: "full"});
    var fullName = (user.name.givenName || '') + ' ' + (user.name.familyName || '');
    var jobTitle = (user.organizations && user.organizations.length > 0)
      ? user.organizations[0].title : '';
    var phone = (user.phones && user.phones.length > 0)
      ? user.phones[0].value : '';
    var department = (user.organizations && user.organizations.length > 0)
      ? user.organizations[0].department : '';

    return {
      name: fullName.trim(),
      title: jobTitle || department,   // graceful fallback
      phone: phone,
      email: email
    };
  } catch (error) {
    return null;   // fail silent — never break the form for the user
  }
}

Requires the Admin SDK API (formerly “Admin Directory API”) enabled under Services in the Apps Script editor.

🎬 The Animated Logo

Alongside the web app: the static wordmark rebuilt as a 24fps animated GIF — built in Adobe After Effects, exported through Media Encoder and Photoshop.

Composition specs: 380–400 × 150–200px · 24fps · 4-second duration, resolving by ~1.5s and holding on the final frame · solid white background baked in at export (Outlook renders transparent GIFs with jagged white pixelation around edges — a solid background eliminates the problem before it exists).

Layer Separation & Timing

Element	Behaviour	Technique
Wordmark (letters)	Soft directional wipe reveal	Linear Wipe, heavy feather (~200), opacity fade
Accent letter	Delayed fade-in, overshoot to 110–115% scale, settles to 100%	Opacity + Scale keyframes, Easy Ease (F9)
Bracket accents	Slide in, mechanical “strike-on” flicker (neon tube effect)	Position keyframes on Speed Graph (steep-then-flat) + manual opacity flicker across ~6 frames

Motion blur enabled per-layer and at master composition level so the accent “snap” carries realistic blur instead of looking robotic.

Export Pipeline (two undocumented gotchas worth flagging)

Adobe Media Encoder’s native Animated GIF exporter silently locks frame rate to PAL values (25/50fps) unless the source is exported as H.264 first, and recent versions have quietly removed GIF looping control from the UI.

Export composition as H.264 MP4 @ 24fps (preserves frame rate options)
Drag MP4 into Photoshop
File → Export → Save for Web (Legacy)
Format: GIF · Colors: 64–128 · Looping: Once

Target output: under 300KB (ideally under 150KB) to avoid corporate spam filters flagging heavy image attachments.

🌐 Global CDN & Hosting Fixes

Hosting the finished GIF turned out to be its own problem, with three sequential failures:

Apps Script itself can’t hold media — only .gs/.html supported; Base64-embedding was rejected (~33% payload inflation, Outlook/Gmail distrust inline Base64 images, and it made the editor lag badly).
Google Drive links break — Drive treats an automated image request from an email client as bot traffic and blocks it, producing the classic broken- image placeholder.
Google Sites links also failed — the copied URL carried a session token tied to the account that generated it (worked for them, broke for everyone else), and the Site itself was restricted to internal users only — meaning the image would never render for anyone outside the organisation who received the email.

Fix: host the GIF on a genuinely public, hotlink-friendly CDN outside Google’s walled garden entirely.

<a href="[COMPANY_WEBSITE_PLACEHOLDER]" target="_blank"
   style="text-decoration:none; display:inline-block; width:180px; outline:none; border:none;">
  <img src="[PUBLIC_CDN_LINK_PLACEHOLDER]"
       alt="Company Logo" width="180"
       style="display:block; border:none; outline:none; margin-left:-6px;">
</a>

Note the explicit display:inline-block; width:180px on the wrapping anchor — without it, the clickable area stretches across the full signature width, causing accidental mis-clicks near the logo.

Issue	Fix
Directory lookup delay left users staring at a blank form	Dismissible dark-mode “toast” (`Fetching your details…`), fades on data arrival
Raw loading text got stuck inside the phone field for users with no number on file	Toast decoupled entirely from form fields
Empty phone number rendered as a bare `t:` label	Phone block wrapped in its own element, hidden entirely when blank — email reflows to fill the space
Some staff need an extra wellbeing/benefits text block appended	Two explicit copy actions (Copy Standard / Copy + Extended) rather than a settings toggle — what’s copied always matches what’s visibly selected

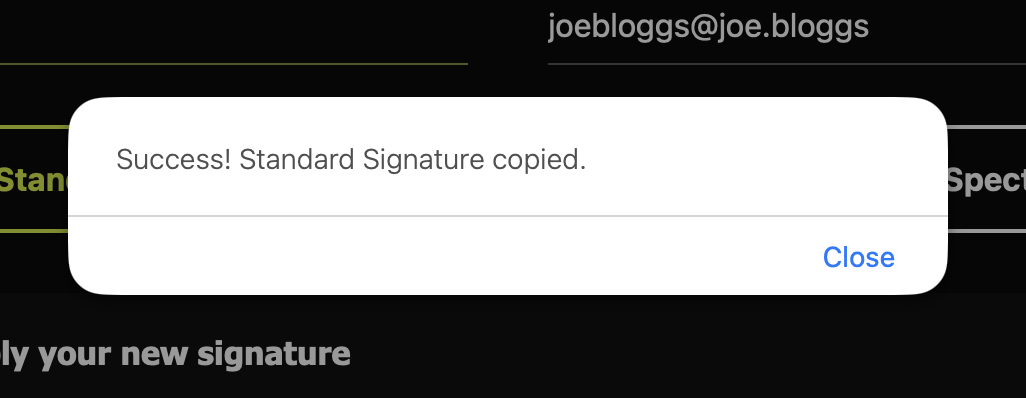

Dialog — Signature Copied

// Index.html — phone field graceful hide/show
var phoneWrapper = document.getElementById('phone-wrapper');
if (phone && phone.trim() !== '') {
  document.getElementById('prev-phone').innerText = phone.trim();
  phoneWrapper.style.display = 'inline';
} else {
  phoneWrapper.style.display = 'none';
}

💰 Cost & Business Impact

Metric	In-house solution	Typical vendor (Exclaimer / CodeTwo)
Pricing model	—	~£1.00–£1.50 / user / month
Annual cost (few hundred staff)	£0.00	£4,500 – £9,000
Setup	In-house engineering time	Consultancy + agency design fee
Data processing	Stays inside existing tenancy	Routed through third-party platform

Beyond the licensing saving, the project delivered a bespoke animated brand asset a boutique creative agency would typically quote £1,500–£2,500 for separately, plus a reusable engineering pattern (Apps Script + Admin Directory API) extendable to future internal tools.

🚀 Deployment

Source assets (final GIF, static PNG, AE project files) stored in a Shared Drive — not a personal account, so nothing breaks if an individual account is ever suspended.
Apps Script deployed as Web App: Execute as Me · Access: Anyone within the organisation.
Embedded as a full-page embed inside a dedicated Google Site page.
Distributed via Managed Chrome Bookmarks policy (Workspace Admin Console → Devices → Chrome → Settings) — the tool appears directly in every staff member’s bookmarks bar with zero rollout email required.
Versioning discipline: each major revision is a new Apps Script project (V1, V2, …) rather than an in-place overwrite — a working rollback is always one deploy away.

🛠️ Tech Stack

Google Apps Script · HTML/CSS/JS · Google Workspace Admin Directory API · Adobe After Effects · Adobe Media Encoder · Photoshop

📂 Repository Structure

email-signature-generator/
├── README.md
├── screenshots/
│   ├── Main_Screen.png
│   ├── Toast_Message_AD_Extract.png
│   └── Dialog_Signature_Copied.png
├── apps-script/
│   ├── Code.gs
│   └── Index.html
└── assets/
    ├── logo-static.png
    └── logo-animated.gif
